Duo integrates with Microsoft Windows client and server operating systems to add two-factor authentication to Remote Desktop and local logons and credentialed UAC elevation prompts.
Duo Authentication for Windows Logon adds Duo two-factor authentication to these Windows and Windows Server logon scenarios:
Duo's Windows Logon client does not add a secondary authentication prompt to the following logon types:
Please review all these compatibility and installation notes before proceeding.
This application communicates with Duo's service on SSL TCP port 443.
Firewall configurations that restrict outbound access to Duo's service with rules using destination IP addresses or IP address ranges aren't recommended, since these may change over time to maintain our service's high availability. If your organization requires IP-based rules, please review Duo Knowledge Base article 1337.
Effective June 30, 2023, Duo no longer supports TLS 1.0 or 1.1 connections or insecure TLS/SSL cipher suites. See Duo Knowledge Base article 7546 for additional guidance.
Effective June 30, 2023, Duo no longer supports TLS 1.0 or 1.1 connections or insecure TLS/SSL cipher suites.
The current version of Duo for Windows Authentication supports TLS 1.2 when installed on a version of Windows that also supports and uses TLS 1.2 or higher.
See the article Guide to TLS support for Duo applications and TLS 1.0 and 1.1 end of support for more information.
Duo Authentication for Windows Logon supports both client and server operating systems.
Servers (GUI and core installs):
Ensure your system's time is correct before installing Duo.
Duo Authentication for Windows Logon does not support devices with ARM processors, like the Surface Pro X.
Duo for Windows Logon supports these factor types for online two-factor authentication:
U2F security key support is limited to Offline Access only.
Duo Authentication for Windows Logon doesn't support inline self-service enrollment for new Duo users. Unenrolled users, that is, users that do not yet exist in Duo with an attached 2FA device, must be created manually by an administrator, imported by an administrator or self-enrolled through another application which supports Duo’s self-service enrollment (see Test Your Setup) before those users can log in with Duo for Windows Logon.
The Duo username (or username alias) should match the Windows username. When you create your new RDP application in Duo the username normalization setting defaults to "Simple", which means that the if the application sends the usernames "jsmith," "DOMAIN\jsmith," and "email@example.com" to Duo at login these would all resolve to a single "jsmith" Duo user.
Duo for Windows Logon supports Duo Push, phone callback or SMS passcodes, and passcodes generated by Duo Mobile or a hardware token as authentication methods. Duo users must have one of these methods available to complete 2FA authentication.
If the user logging in to Windows after Duo is installed does not exist in Duo, the user may not be able to log in to the system.
Read the enrollment documentation to learn more about enrolling your users in Duo.
Before moving on to the deployment steps, it's a good idea to familiarize yourself with Duo administration concepts and features like options for applications, available methods for enrolling Duo users, and Duo policy settings and how to apply them. See all Duo Administrator documentation.
Log in to the Duo Admin Panel and navigate to Applications.
Click Protect an Application and locate the entry for Microsoft RDP in the applications list. Click Protect to the far-right to configure the application and get your integration key, secret key, and API hostname. You'll need this information to complete your setup. See Protecting Applications for more information about protecting applications in Duo and additional application options.
We recommend setting the New User Policy for your Microsoft RDP application to Deny Access, because no unenrolled user may complete Duo enrollment via this application.
If you'd like to enable offline access with Duo MFA you can do that now in the "Offline Access Settings" section of the Duo application page, or return to the Admin Panel later to configure offline access after first verifying logon success with two-factor authentication.
Download the Duo Authentication for Windows Logon installer package. View checksums for Duo downloads here.
The security of your Duo application is tied to the security of your secret key (skey). Secure it as you would any sensitive credential. Don't share it with unauthorized individuals or email it to anyone under any circumstances!
Available in: Duo Essentials, Duo Advantage, and Duo Premier
Version 4.2.0 of Duo Authentication for Windows Logon adds support for local trusted sessions, reducing how often users must repeat Duo two-factor authentication. The Remembered Devices policy now includes a setting for Windows logon sessions, which when enabled offers users a "Remember me" checkbox during local console login for the duration specified in the policy.
When users check this box and complete Duo authentication, they aren't prompted for Duo secondary authentication when they unlock the workstation after that initial authentication until the configured trusted session time expires. If the user changes networks, authenticates with offline access while the workstation is disconnected, logs out of Windows, reboots the workstation, or clicks the "Cancel" button during workstation unlock, Duo for Windows Logon invalidates the current trusted session and the next Windows logon or unlock attempt will require Duo authentication again.

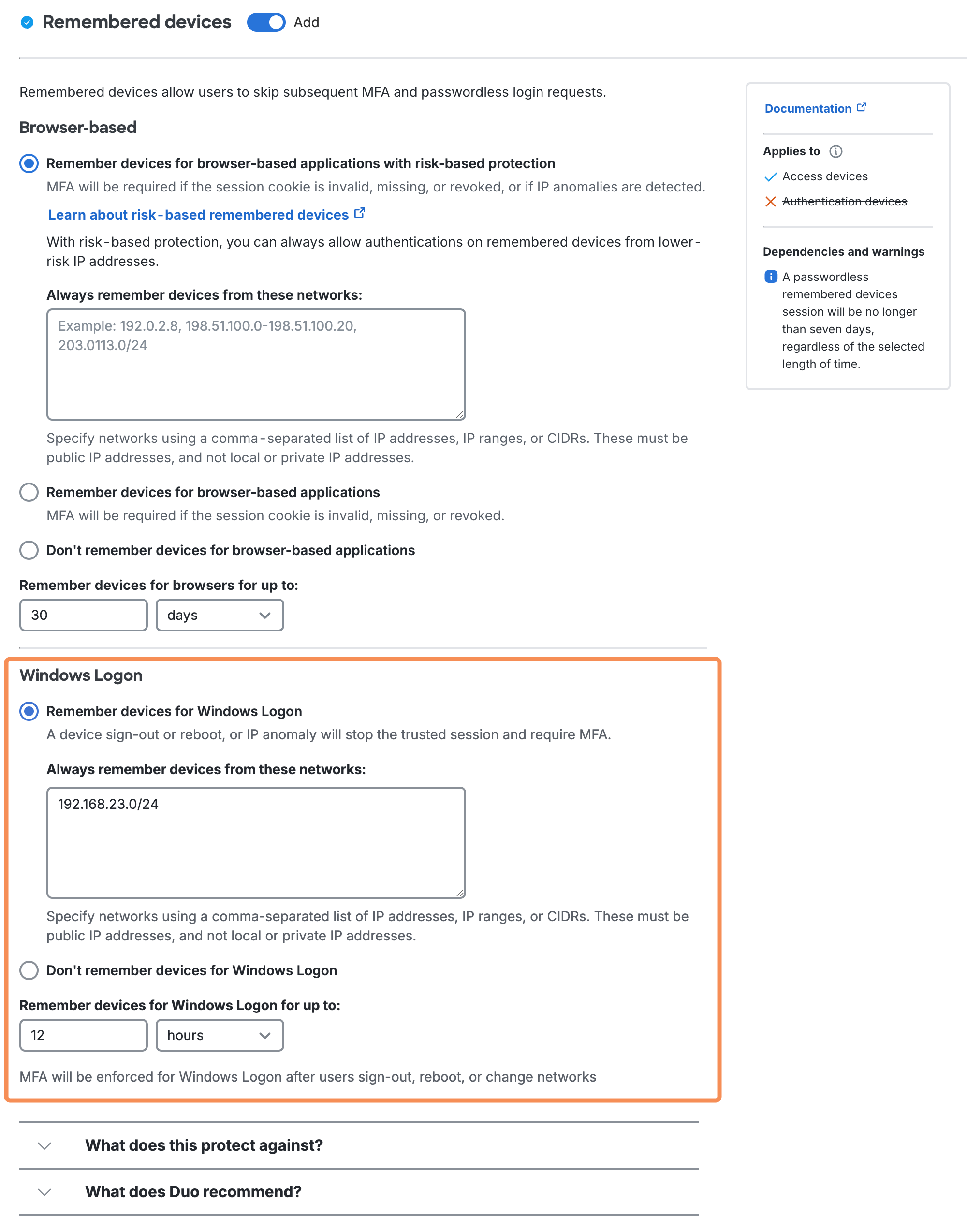

To enable remembered devices for Windows Logon:
Create a new custom policy or update an existing policy for remembered devices which enables the Remember devices for Windows Logon option, and enter the number of hours or days you want a trusted Windows logon session to last. Click Save Policy when done.
Apply the custom policy to your Microsoft RDP Duo application as a group or application policy. If you made the change in your global policy then the setting applies to all your Microsoft RDP Duo applications, unless any of them have a policy assigned with conflicting remembered Windows Logon device settings.
The policy setting takes immediate effect — there is no need to reinstall the Duo Authentication for Windows Logon application after updating the remembered device policy as long as clients have already installed v4.2.0 or later. Systems with older versions of Duo for Windows Logon must upgrade to 4.2.0 or later to see the new option.
With this policy setting applied, users who log on to the local Windows console see an additional option on the Duo for Windows Logon prompt for remembering the device. This option will not display for RDP/remote logins to Windows systems with Duo Authentication for Windows Logon installed, regardless of the effective remembered devices policy setting for Windows Logon.
Administrators may revoke the Windows local trusted Duo session by unassigning a remembered devices policy for Windows Logon from a Microsoft RDP application, editing the policy attached to a Microsoft RDP application to disable the Windows Logon remembered devices setting, or by deleting the registry entry for the user session from the Windows client. Learn more about this in the Windows Logon FAQ.
To test Duo on your Windows system with a group of pilot users, we suggest setting your application's New User Policy to "Allow Access" while testing. The pilot users that you've enrolled in Duo with an associated 2FA device get prompted to complete Duo authentication, while all other users will be transparently let through.
If you want to deploy Duo to your Windows systems but have no users complete 2FA until a specific date (after all user enrollment is complete), set the New User Policy to "Allow Access" and set the Authentication Policy to "Bypass 2FA". With these two policy settings in place users who have and who have not enrolled in Duo log in to the Windows system as usual without experiencing Duo.
If you chose to enable offline access on your application, then enrolled users who bypass 2FA due to the effective Authentication Policy would still be prompted to complete offline enrollment. To avoid confusion, we recommend leaving offline access off until you require users to complete Duo 2FA while online.
When you're ready to require Duo authentication for all users of the target Windows system, change the "New User Policy" to "Deny access" and change the "Authentication Policy" to "Enforce 2FA". This will prompt all enrolled users to perform Duo 2FA after they type in their usernames and passwords, and prevent users who have not enrolled in Duo from logging in without 2FA.
Run the Duo Authentication for Windows Logon installer with administrative privileges.
If you receive an "Installation stopped" error from the Duo installer please refer to Duo KB article 6462 for remediation steps.

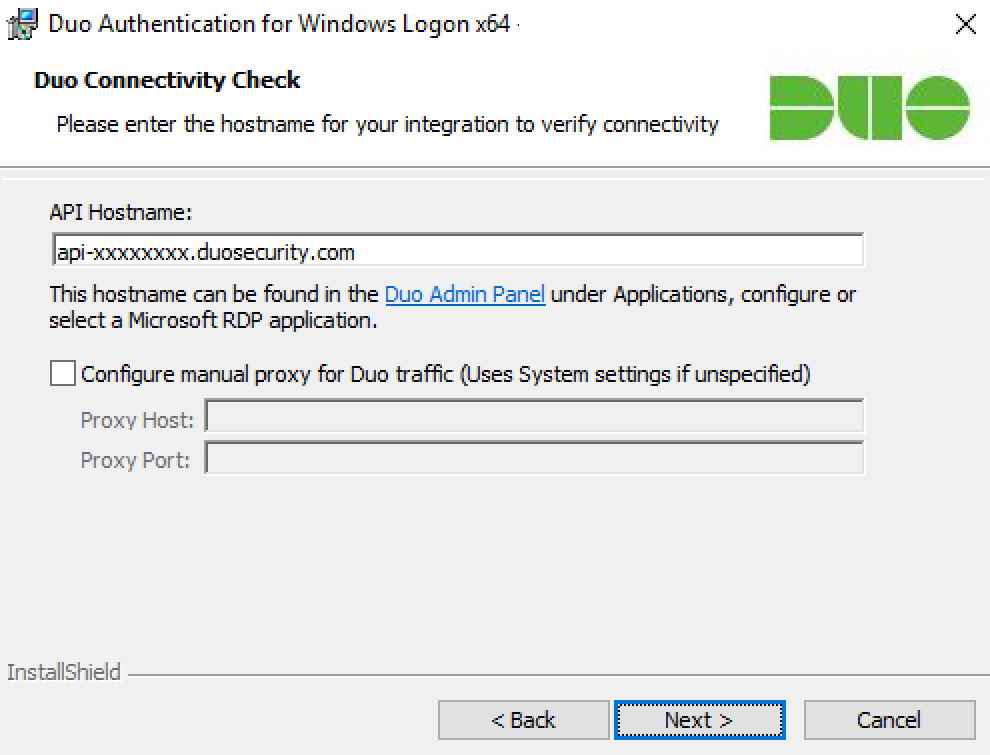

When prompted, enter your API Hostname from the Microsoft RDP application's details page in the Duo Admin Panel and click Next. The installer verifies that your Windows system has connectivity to the Duo service before proceeding.
If the connectivity check fails, ensure that your Windows system is able to communicate with your Duo API hostname over HTTPS (port 443).
If you need to use an outbound HTTP proxy in order to contact Duo Security's service, enable the Configure manual proxy for Duo traffic option and specify the proxy server's hostname or IP address and port here.

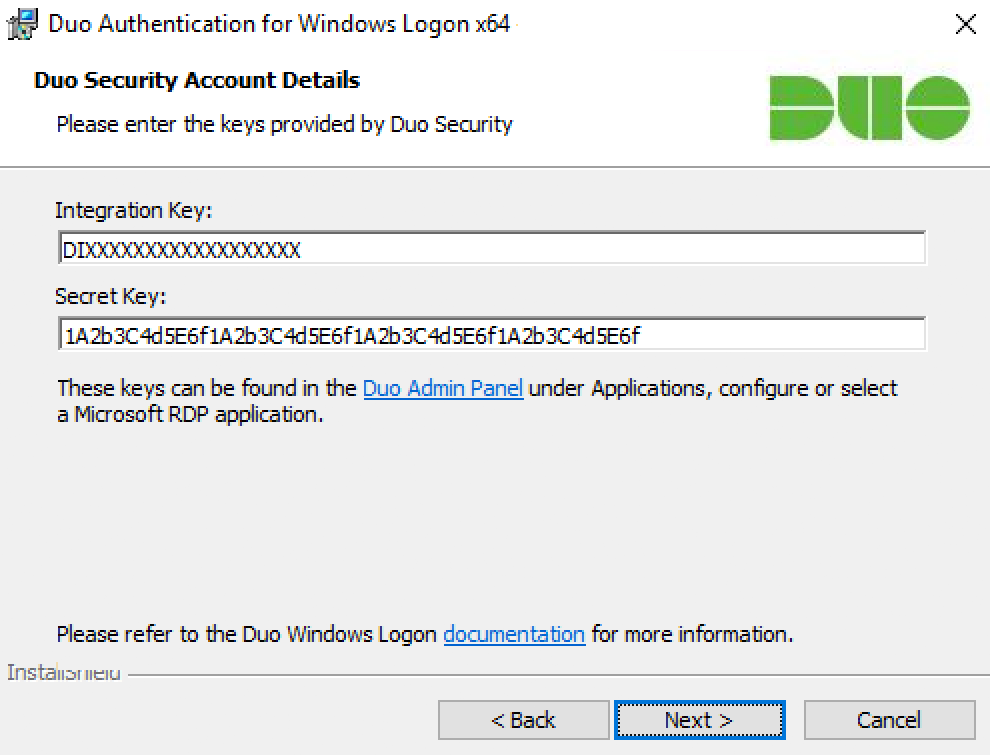

Enter your integration key and secret key from the Microsoft RDP application in the Duo Admin Panel and click Next again.

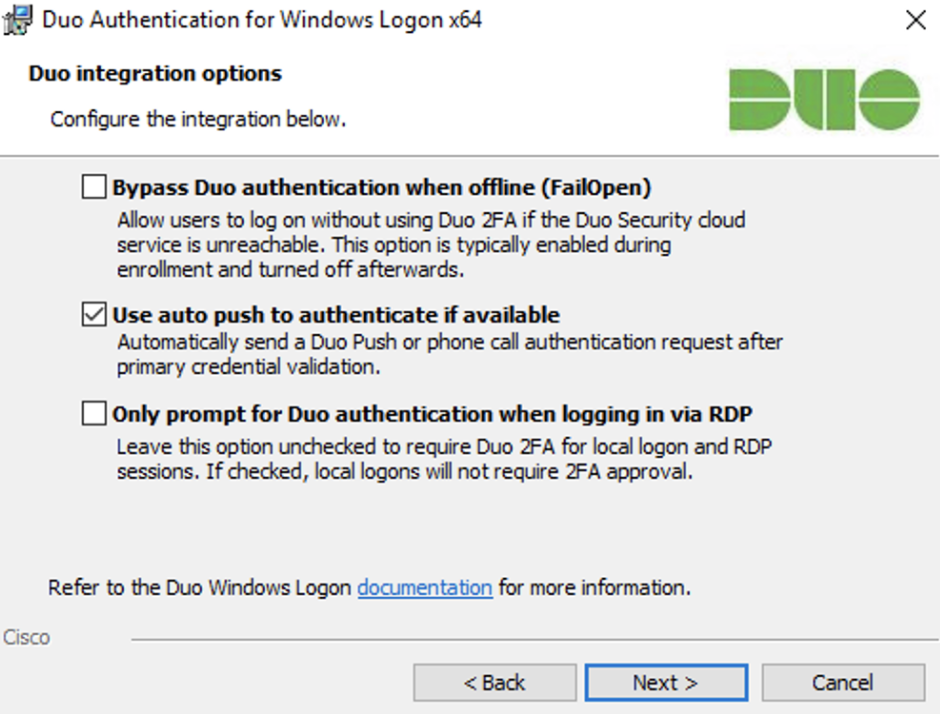

|Bypass Duo authentication when offline (FailOpen)||Enable this option to allow user logon without completing two-factor authentication if the Duo Security cloud service is unreachable. Checked by default. If you plan to enable offline access with MFA consider disabling FailOpen.|
|Use auto push to authenticate if available||Automatically send a Duo Push or phone call authentication request after primary credential validation to the first capable device attached to the user. Checked by default and applies to all users of the target system.|
|Only prompt for Duo authentication when logging in via RDP||Leave this option unchecked to require Duo two-factor authentication for console and RDP sessions. If enabled, console logons do not require 2FA approval. If you want to enforce protected offline access to laptop logins, be sure you don’t check this box. If you do, laptop console logins won’t require any form of Duo MFA.|

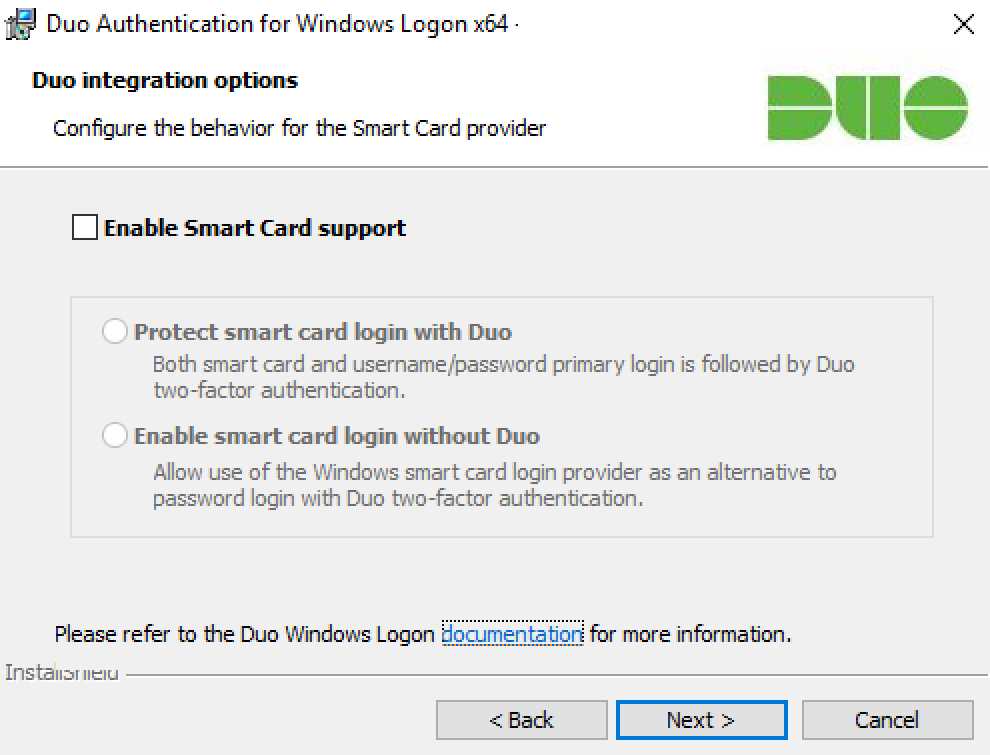

If you plan to use smart cards on the systems where you install Duo, click to Enable Smart Card Support and select your smart card options:
|Protect smart card login with Duo||Select this option to require Duo authentication after primary login with username and password or primary authentication with a smart card. Supported for local console logins.|
|Enable smart card login without Duo||Select this option to permit use of the Windows smart card login provider as an alternative to Duo authentication. Smart card logins won't require 2FA.|
These options only support the Windows native smart card provider. Available in version 3.1.1 and later.

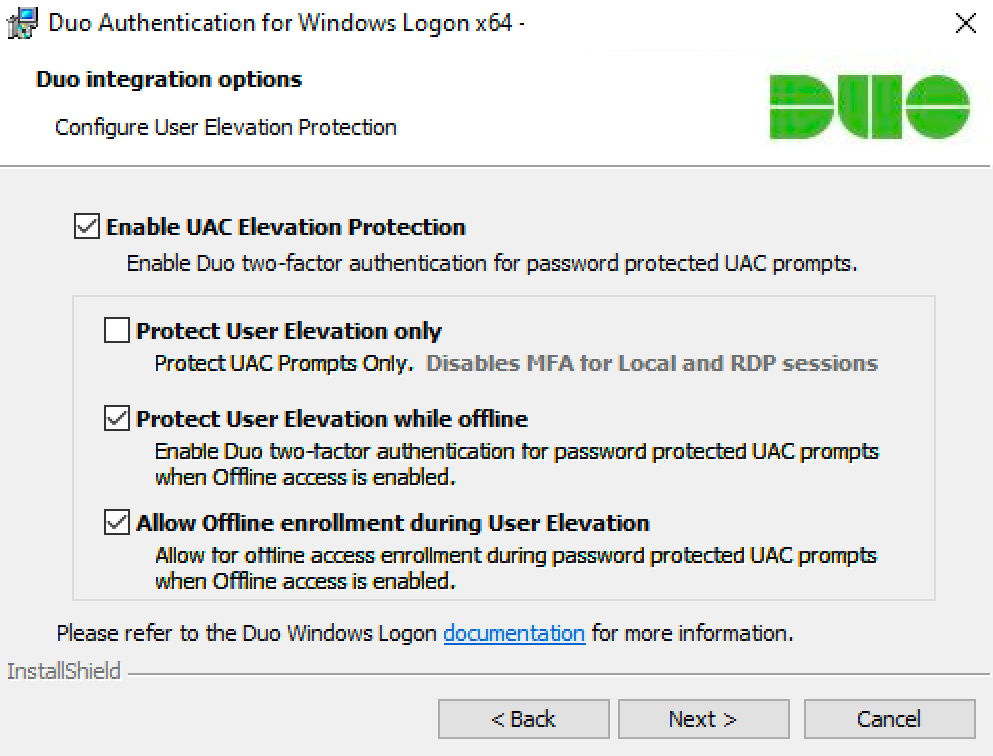

If you'd like to add Duo 2FA protection to account elevation via Windows User Account Control (UAC), click to Enable UAC Elevation Protection and select your elevation options:
|Protect User Elevation only||Enable Duo two-factor authentication at password-protected UAC prompts only. If you check this box Duo will not prompt for 2FA at local or RDP login or workstation unlock.|
|Protect User Elevation while offline||Permit offline access authentication for password-protected UAC prompts if offline access is also enabled.|
|Allow offline enrollment during User Elevation||Allow and prompt for offline access enrollment during UAC password elevation if offline access is also enabled.|
Available in version 4.1.0 and later.
Click Next and then Install to complete Duo installation.
If you need to change any of your chosen options after installation, you can do so by updating the registry. See the Duo for Windows Logon FAQ for instructions on how to update the settings.
To test your setup, attempt to log in to your newly-configured system as a user enrolled in Duo.
The Duo authentication prompt appears after you successfully submit your Windows credentials. With automatic push enabled (the default installation option), the prompt indicates that Duo pushed an approval request to your phone. Duo sends the push request to the first phone activated for Duo Push and associated with that Duo user.
With automatic push disabled, or if you click the Cancel button on the Duo authentication prompt after a 2FA request was sent, you can select a different device from the drop-down at the top (if you've enrolled more than one) or select any available factor to verify your identity to Duo:
If you applied a policy to your Microsoft RDP application that enables remembered devices for Windows Logon, then during Duo authentication at the local system's console you'll see the Remember me for... option, reflecting the number of hours or days you set in the policy.
If you check this box when authenticating you won't need to perform Duo second-factor authentication again for the duration specified on the prompt the next time you unlock the workstation to continue the logged-in Windows session.
Duo will prompt you to complete two-factor authentication at the next Windows logon or unlock after the remembered device session ends, and at that time you can choose to begin a new trusted logon session.
If you enabled User Elevation in Duo for Windows Logon v4.1.0 or later, you'll see the Duo authentication prompt after you enter your password for a credentialed elevation request. The application you were trying to launch runs after you approve the Duo two-factor request. If you chose to remember the device at the Windows desktop login, then you won't need to approve Duo authentication for UAC elevations made by the same logged-in account either until the trusted Duo session ends.
Remember: if you find that Duo Authentication for Windows Logon has locked you out of your Windows system (e.g. due to a configuration error), you can reboot into Safe Mode to bypass it.
See the Duo Knowledge Base article Why are users unexpectedly bypassing 2FA for Windows Logon (RDP)? for additional remediation steps.
Duo Authentication for Windows Logon v4.0.0 introduces offline access, allowing secure local logons to Windows systems even when unable to contact Duo’s cloud service.
Users must have either:
We strongly suggest you test offline access with one of the security keys you plan to use before purchasing them for all your users.
HyperFIDO tokens are not supported for offline access activation, nor are simple OTP passcode tokens or Duo D-100 hardware tokens.
Note these functional limitations for offline access authentication devices:
Return to your "Microsoft RDP" application page in the Duo Admin Panel. You may have given the RDP application a different name when you created it, but the "Type" will always be shown as "Microsoft RDP" on the Applications page.
Scroll down to the bottom of the RDP application’s page to locate the Offline Access Settings. Check the box next to Enable offline login and enrollment to turn on offline access.
Check the Only allow offline login from users in certain groups to specify a group or groups of Duo users permitted to use offline access. Users who are not members of the groups you select here won't be able to enroll in offline access or login in with MFA when the Windows system is unable to contact Duo, and instead are subject to your fail mode configuration (let in without MFA if you enabled fail open, or prevented from logging in if you disabled fail open).
After you configure this option, when a user logs into a Windows system while it's online and can reach Duo and it has been greater than 24-30 hours since the last online authentication, Duo for Windows Logon will update the offline policies for all users on the system, including deprovisioning them for offline access if they are no longer members of the offline groups selected for offline login in the Duo Admin Panel.
If you also configured permitted groups on your RDP application, users need to be members of both the permitted and the offline login groups to use offline access.
Choose from the two options for expiring offline access in the Prevent offline login after setting:
Enter the maximum number of offline logins allowed to users. With this option, there is no expiration date for offline access.
Users may log on to the Duo-protected Windows workstation while offline the number of times you specify here. They'll need to reconnect their offline computer to the internet upon reaching this limit. The next time they perform an online Duo authentication, the computer’s offline counter resets.
Enter the maximum number of days offline, up to 365. With this option, there is no limit to the number of times a user logs in while offline during the allowed period.
Users need to reconnect their offline computer to the internet upon reaching the end of the period you define here. The next time they perform an online Duo authentication, the computer’s offline expiration date resets. If the user does not perform online Duo authentication before the maximum number of days specified here is reached, they can no longer log in offline, and so must connect to Duo's service in order to log in at all.
Users may activate offline access using either the Duo Mobile application for iOS or Android, or a U2F security key. Both offline authentication methods are allowed unless you uncheck one in the Offline authentication methods setting. You may not uncheck both options.
Any authentication method enabled for offline access is always permitted, overriding any other policy setting restricting authentication methods for the RDP application.
Click the Save button.
No information about logins using offline access is reported in Duo Admin Panel authentication reports while the Windows system is offline. At the next online authentication, login events that occurred while the system was offline are sent to Duo's service. These events show up in the Authentication Log with other user access results, and show the offline authentication method used.
By default, five (5) users may enroll in offline access. To increase or reduce the number of users that may activate offline access on a given Windows client, use the Registry Editor (regedit.exe) with administrator privileges to create or update the following registry value:
Location: HKLM\SOFTWARE\Duo Security\DuoCredProv:
||Create this value and set to the number of users you would like to have the ability to enroll in offline access on a given Windows system. Minimum value: 1; Maximum value: 50. If not set the default is 5.|
Once the maximum number of users have activated offline access, the next user receives an error when attempting to enroll in offline access.
To force offline reactivation for a previously activated user on a given Windows system, use the Registry Editor (regedit.exe) with administrator privileges to delete the entire registry key that includes the username from HKLM\SOFTWARE\Duo Security\DuoCredProv\Offline.
You may have Windows systems where no users should log in using offline access, regardless of the application setting in the Duo Admin Panel. To prevent offline authentication for any user on a given Windows client, use the Registry Editor (regedit.exe) with administrator privileges to create or update the following registry value:
Location: HKLM\SOFTWARE\Duo Security\DuoCredProv:
||Create this value and set to 0 to disable offline access for all users. Your fail mode configuration applies to offline logins (either fail open or fail closed).|
The next time you (or your end user) logs in to or unlocks the workstation while it’s online and able to contact Duo, the offline activation prompt displays after successful two-factor authentication.
Step through the guided activation process to configure Duo Mobile or a U2F security key for offline MFA.
Once you’ve activated offline access for your account, when your computer isn’t able to contact Duo’s cloud service you’ll automatically be offered the option to login with an offline code or security key after successfully submitting your Windows username and password.
You can also reactivate offline access from the online Duo prompt. Note that only one authentication device — a single phone with Duo Mobile or a single security key — may be activated for offline login. Activating a second device via the reactivation process deactivates the first.
See the full offline activation and login experience in the Duo User Guide for Windows Logon.
You can upgrade your Duo installation over the existing version; there's no need to uninstall first. The installer maintains your existing application information and configuration options.
Download the most recent Duo Authentication for Windows Logon installer package. View checksums for Duo downloads here.
Run the installer with administrator privileges and follow the on-screen prompts to complete the upgrade installation.
If you're upgrading to a version that includes new installer options, the configuration screen for those options won't be shown during an upgrade install. You'll need to configure those new options via Regedit or GPO update. See the Configuration section of the FAQ to learn how to enable and configure Duo for Windows Logon options in the registry, or the Group Policy documentation to learn how to configure options with GPO.
If you'd like to remove Duo Authentication for Windows Logon from your system, open the Windows Control Panel "Programs and Features" applet, click on the "Duo Authentication for Windows Logon" program in the list, and then click Uninstall.
Do not delete the Microsoft RDP application from the Duo Admin Panel until you have uninstalled the Duo application from all Windows systems using that application. If you delete the Admin Panel application before uninstalling the Duo software you may block users from logging in to Windows.
Please see our Duo Authentication for Windows Logon Group Policy documentation.
Need some help? Take a look at the Windows Logon Frequently Asked Questions (FAQ) page or try searching our Windows Logon Knowledge Base articles or Community discussions. For further assistance, contact Support.
If the Duo application denies access to your users, ensure that you have enrolled them in Duo with a username or username alias that matches the username they use to log into Windows, and with a 2FA device attached that is activated for Duo Push, can receive phone calls from Duo, or can generate a one-time passcode. If you applied a new user policy that allows access without 2FA expecting it to allow the blocked users through, this only has effect if the blocked users do not exist in Duo. Refer to these articles to learn more about user enrollment states and how they combine with policy settings to affect user logins.
